Low Operation Cost Belt Filter Press DNL C Serial Belt Thickening Press Filter

Name: Low Operation Cost Belt Filter Press DNL C Serial Belt Thickening Press Filter
Brand: Wulong
Price: 1 USD

Brand Name : Wulong

Model Number : DNL-C

Certification : ISO9001

Place of Origin : Changzhou, Jiangsu

MOQ : Negotiable

Price : Negotiable

Packaging Details : standard package for seaworthy export

Delivery Time : Delivery according to the time agreed by both parties

Warranty : 1 Year

After-sales service provided : Engineers available to service machinery overseas

Voltage : Customer Requirement

Name : Belt Filter Press

Feature : Low noise, no vibration

Belt width (mm) : 1500/2000/2500/3000

Contact Now

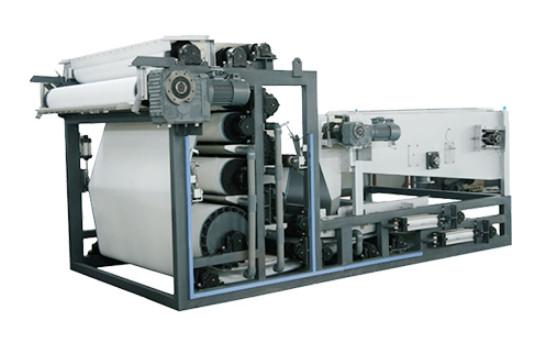

Low Operation Cost Belt Filter Press DNL C Serial Belt Thickening Press Filter

Application and feature

DNL-C serial belt thickening press filter is composed of the thickener and the press filter. It is mainly for the untreated sludge. Without sludge static pre-concentration and the corresponding scrapping mixing equipment, directly under the effect of flocculant and gravity, the sludge with high moisture can be directly dehydrated most free water in concentration section, which improve the sludge treatment efficiency.

● Low moisture content of filter cake

● Compact structure

● Full automatic control, easy operation

● Full open structure, convenient for using and maintenance

● Low running cost: less power consumption, less consumption of flocculant

● Low noise, no vibration

● Short concentration time, better treatment effect

● The filter belt partial device adopts imported components for assembly

● All the water tray and feed hopper are made of stainless steel

● Capacity and filter cake moisture content are superior to the other kind of belt press filters

Main specifications and technical parameters

Type	DNL-C1500	DNL-C2000	DNL-C2500	DNL-C3000
Belt width (mm)	1500	2000	2500	3000
Power (kw)	1.5+3	1.5+4	1.5+4	1.5+4

Production Site
