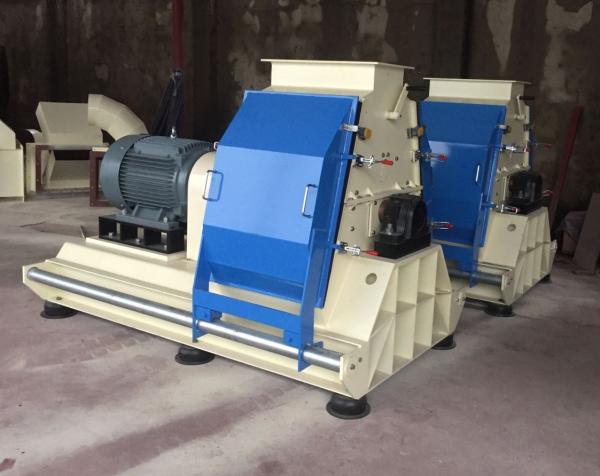

High Efficient Feed Hammer Mill Feed Mill Equipment Water Drop Shape

Jiangsu Wulong Machinery Co., Ltd

High Efficient Feed Hammer Mill Feed Mill Equipment Water Drop Shape

Brand Name : Wulong

Model Number : WF66

Certification : ISO9001

Place of Origin : Changzhou, Jiangsu

MOQ : Negotiable

Supply Ability : 15 Set/Sets per Month

Packaging Details : standard package for seaworthy export

Price : Negotiable

Delivery Time : Delivery according to the time agreed by both parties

Rotor diameter : 660

Name : Feed Hammer Mill machine

Driving type : Coupling drive

Style : Water drop shape

Spindle speed (r/min) : 2970

Using : crushing maize, sorghum, pulp, etc.

Contact Now

High Efficient Feed Hammer Mill Feed Mill Equipment Water Drop Shape

1. Application and suitable scope

WF66 energy saving king hammer mill adopts “Water drop shape” structure and it is the latest crushing technology and manufacturing process introduced from abroad. It is suitable for crushing maize, sorghum, wheat, pulp, fiber and other materials, which is widely used in the alcohol, grain, feedstuff, citric acid, food and other industries.

The advanced crushing chamber structure design of water drip shape, application of adjustable pressure screen stop-gauge device and tuning technology, increasing the output.

Fully optimized hammers arrangement, make the hammer mill’s vibration and noise lower, running more smoothly and efficiency higher.

The application of adjustable pressure screen stop-gauge device at the top of the crushing chamber and the tuning technology, can break the material’s circulation layer, increase crushing efficiency.

The design of axial air supplement can destroy the material’s circulation layer effectively, which is beneficial to crushing and sifting of the feed stock, as well as the cooling of the bearing.

Various precision detection that including high precision dynamic balancing, make sure it runs more smoothly, with lower noise and more ideal performance.

The positive and negative working rotor can greatly extend the service life of the wearing parts.

Movable fully open operation door and safety interlock device to ensure the convenience and safety of door opening

Linkage type pressure screen mechanism makes the replacement of screen more convenient and reliable.

The hammer mill can be equipped with variable frequency impeller or magnetic belt feeder that of advanced technology to make it work reliably.

The clearance between hammer and screen is adjustable, it can adapt to the high efficiency crushing of different feed stocks.

2. Main specifications and technical parameters

Table 1

Models WF66-60 WF66-80 WF66-110
Rotor diameter(mm) 660 660 660
Width of crusher chamber(mm) 600 800 1100
Spindle speed (r/min) 2970 2970 2970
Driving type Coupling drive Coupling drive Coupling drive
Hammer quantity (pieces) 64 96~112 128~144
Power of motor(KW) 55/75 90/110 160/200

Productivity (T/h)

(Corn/Maize)

Φ1.0 sieve pore 3~5 4~6 5.5~7 6~8 9~11 11~12
Φ1.6 sieve pore 5~7 7~9 8~10 10~12 13~15 16~18
Φ1.8 sieve pore 7~8 9~10 11~12 13~14 16~18 18~20
Reference weight (kg) 1650~1750 1980~2100 2600~2750
Outline dimension (mm) 2247×1350×1570 2667×1350×1570 2967×1350×1570

Note:

  1. The reference productivity in the above table is the crushing output when the crusher is with correct installation, good suction, the negative pressure under the sieve ≥ 700~1000Pa, standard high porosity sieve plate, and the moisture content ≤14%.

  2. The productivity is only for model selection reference. If there is any special requirement, it can also be designed separately.

  3. Model named illustrate

W F 66 - 60

Wulong Hammer mill Rotor diameter*10(mm) Width of crush room*10(mm)

3. Main structure and working principle

1,Structure diagram:Please refer to Figure 1.

2,Working principle

Material is fed from the top inlet and will enter into the crushing chamber through the feeding guide mechanism. The material is struck by high speed rotating hammerer, so it is crushed by being rubbed and struck in cycles and cutting function of punching sieve. Meanwhile under the action of centrifugal force and air flow, the material of qualified granularity will pass through the sieve pore and discharge from the outlet under the base. Customer can adapt multiple auxiliary equipments to finish the work such as material collection, conveying and warehouse entry based on the specific process.

Figure 1: Structure Diagram of WF66 Hammer Mill

High Efficient Feed Hammer Mill Feed Mill Equipment Water Drop Shape

1. Feeding guide mechanism, 2. Engine base, 3. Press sieve mechanism, 4. Operating door, 5. Motor, 6. Upper shield, 7. Rotor

High Efficient Feed Hammer Mill Feed Mill Equipment Water Drop Shape

Figure 2: Installation Foundation Drawing of WF66 Hammer Mill (Refer to Table 2)

Table 2

Dimension

Model

a b c d e f g h i
WF66-60 602 770 1200 2247 160*3=480 2110 622 222*3=666 698
WF66-80 802 970 1250 2667 170*4=680 2360 822 216.5*4=866 898
WF66-110 1102 1270 1290 2967 160*6=960 2700 1122 233*5=1165 1198

4. Hoisting installation and adjustment

1,There are 4 flying rings at each side of the crusher for hoisting. If limited by the site condition, the machine can do plane movement through steel pipe ofφ50
2,There are 6 shock absorbers under the base of crushing chamber. When installing, it can be put on the foundation or the rail directly. It is not necessary to use other connection for fastening. But please note that when handling and installing, it is quite essential that shock absorbers land simultaneously.

3,The arrangement of hammer must be consistent with the requirement shown in the drawing. The mass difference of the hammer of relative two groups should be ≤5 g. After being used for some stage and the first angle of hammer is worn, the motor changes its direction to use the second angle of hammer for working. If the hammer is double-headed hole, when the second angle is worn, the hammer can be turned around, using its third angle, and then the rotor inversion running, using the fourth angle of the hammer. After all angles are worn, replace new hammers.

4,When replacing hammer, the relative two groups should be replaced at the same time.

5. Operation and function

1,Operator should be familiar with the machine’s performance, understand its structure, and learn the Operation Instruction seriously.

2,Before starting the machine, check each connection part carefully, no looseness is allowed.

3,Check whether the rotor rotation is flexible and there should be no abnormal noise.

4,Increase feed quantity gradually after no load running for 2~3 minutes.

5,Before stop the machine, first stop feeding, discharge all the remaining material in the machine, and then it could be stopped.

6,The rotating direction of main shaft is determined by different feeding direction. The rotating direction of guide mechanism is controlled by manual. Before open the door, power supply should be switched off. When the door is opening, crusher will stop and meanwhile the motor can not be started, to guarantee the safety and reliability when replacing damageable parts and doing maintenance. After maintenance is finished and the door is closed, put the handle of feed guide plate in the correct position in accordance with the needed rotation of motor.

6. Maintenance and troubleshooting

6.1,Maintenance

<1>Operate strictly in accordance with the operation methods; every shift should do the necessary inspections and cleaning work.

<2>After the machine’s working time of 4000—5000 hours, the bearings should be taken apart and washed once.

<3>Do repair and replacement immediately when the components are damaged or badly worn. After repair, the rotor part should be taken a dynamic balance test.

<4>If the machine will stop for a long time, cleaned up the dustiness and raw material in the machine, to prevent corrosion and the sieve pore blocking.

<5>For a long time deposit, the machine should be placed in ventilated and dry place. Pay attention to rainproof when it is deposited in the open air.

6.2,Method to remove troubles

Symptom Failure Troubleshooting
1.Difficult to start the motor

1. Voltage is too low.

2. Wire sectional area is too small.

3. Fuse is easily burn-out.

1. Start after the electricity usage peak.

2. Replace the proper wire.

3. Replace a fuse that is consistent with the motor capacity.

2.Powerless and overheat of motor

1. Motor does the two-phase operation.

2. Motor is of windings short circuit.

3. Long-term overload

1. Turn off phase, three-phase operation.

2. Do motor repair

3. Work under rated load

3.Strong vibration of the mill

1. Mounting and arrangement of the hammers are wrong.

2. Weight difference of the two group corresponding hammers is too large.

3. Individual hammer is stuck, do not be thrown off.

4. Other parts of the rotor are of imbalance.

5. Bending of spindle

6. Damage of bearing

7. Failure of shock absorber

1. Re-install as the hammer ordered drawing

2. Replace hammers, make the weight difference ≤5 g

3. Make hammer rotate flexibly

4. Do rotor balance

5. Do alignment or replace new shaft

6. Replace bearing

7. Replace shock absorber

4.Abnormal noise of the crush chamber

1. Iron, stone and other hard objects into the machine

2. Loss or damage of internal parts

3. The clearance between hammer and screen is too small.

1. Stop to do hard objects removal

2.Stop to do inspection, do components replacement

3. Make the clearance meet the requirement

5.Significant decrease of productivity

1. Motor power is not enough.

2. Hammer is of serious abrasion.

3. Uneven material feeding

4. High moisture content of raw material

5. The size of sieve pore does not meet the requirements.

6. Small aperture ratio of sieve slice

1. Check motor

2. Reverse end for end to use or replace new hammers

3. Do uniform feeding

4. Drying causes

5. Replace sieve plate with corresponding sieve pore

6. Replace sieve slice of high aperture ratio

6.Regurgitate of feed port

1. Blockage of conveying pipeline

2. Blockage of sieve pore

1. Open up the blockage

2. Clean the sieve pore or replace the sieve plate

7.Finished product is too rough

1. Sieve plate is of serious abrasion or holes.

2. Sieve plate and sieve frame are loosed fit, or the side clearance is too large.

1. Fill holes or replace sieve plate

2. Stop to do inspection, make the sieve plate and sieve frame fit tight

8.The bearing is overheating

1. The grease is too much, too little or not good.

2. Damage of bearing.

3. Bending of spindle or unbalance of rotor.

4. Work overload of a long-term

1. Replace grease, add oil as required

2. Replace a new bearing

3. Do spindle alignment and rotor balance

4. Reduce the feeding quantity

9.Noise of coupling 1. Damage of elastic pin 1. Replace new elastic pin

Structure Features of feed hammer mill

1. Water drop grinding chamber design, it can remove circulation to get secondary crushing and improve grinding uniformity and capacity.

2. feed hammer mill rotor by checking, equipment operation less vibration, less noise, more stable.

3. Adopt direct drive, new bibby coupling, avoid bearing heating.

4. Import advanced bearing, long life, and stable run.

5. Can use impeller feeding, variable frequency feeding, screw conveyor, stepless feeding and various feeding system.
